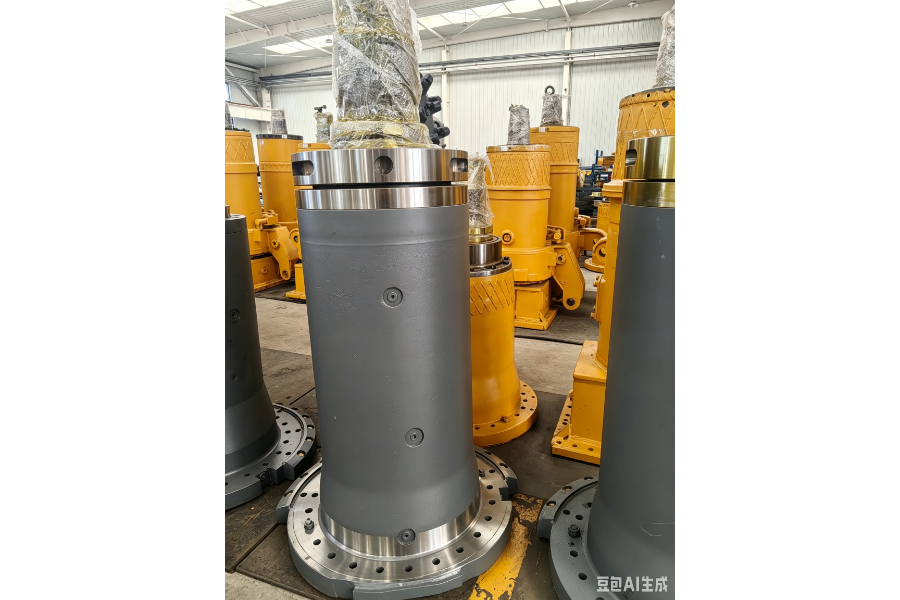

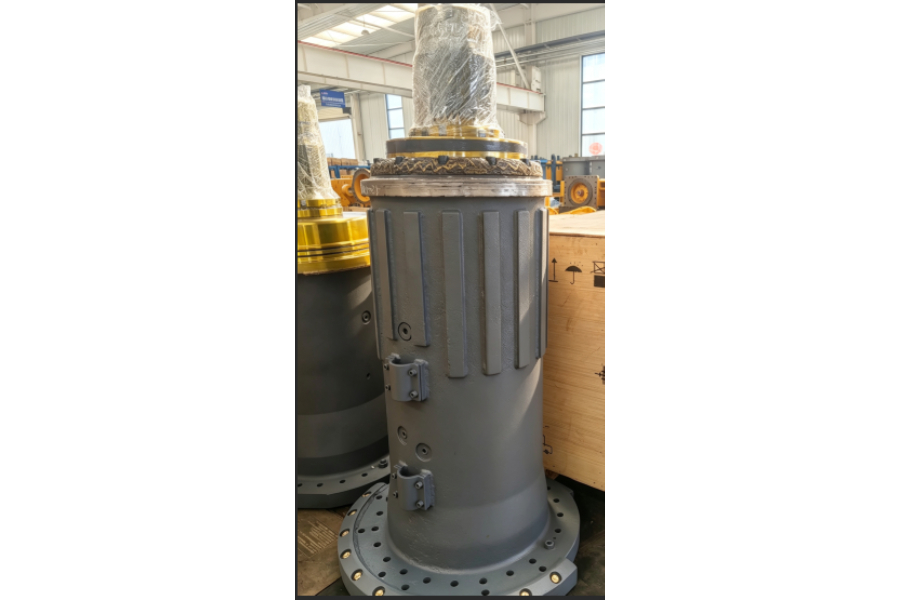

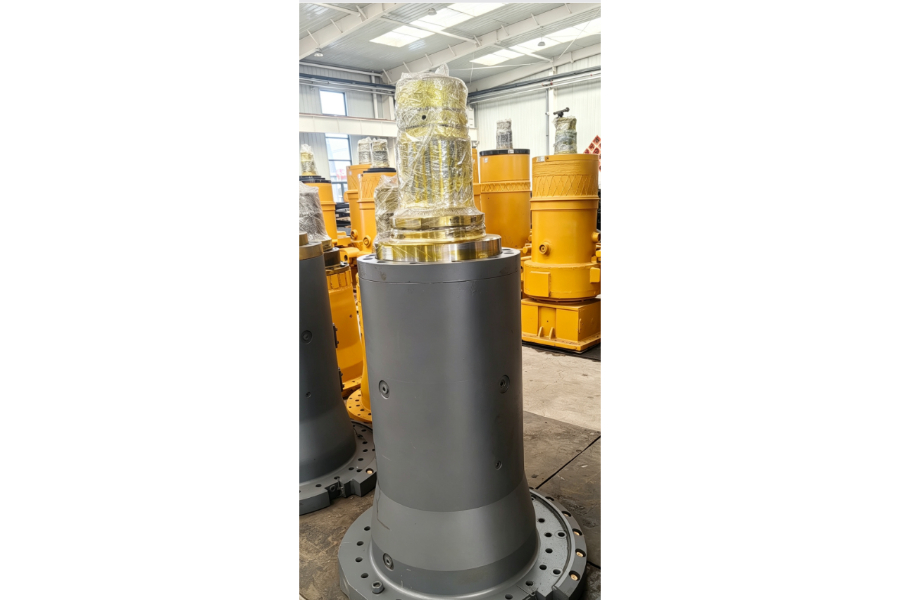

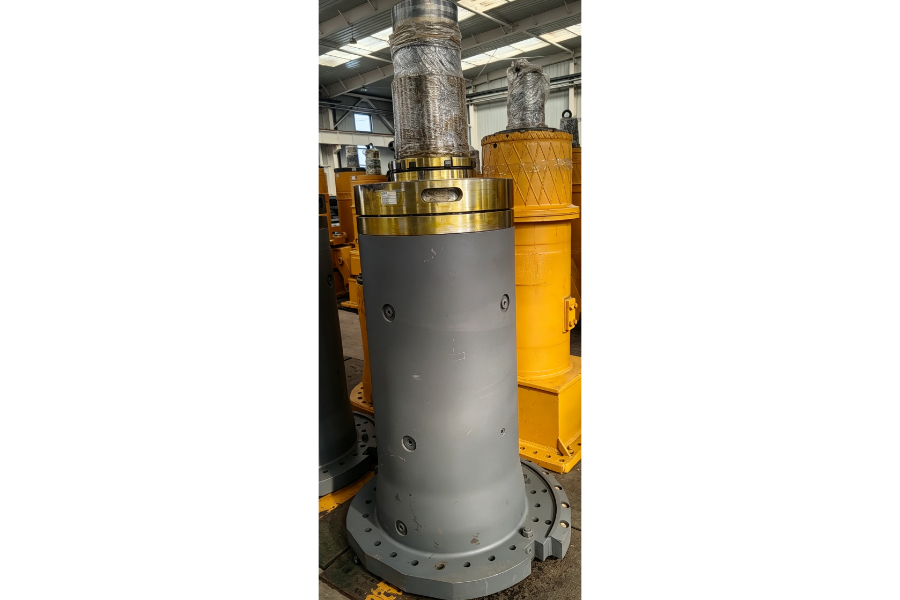

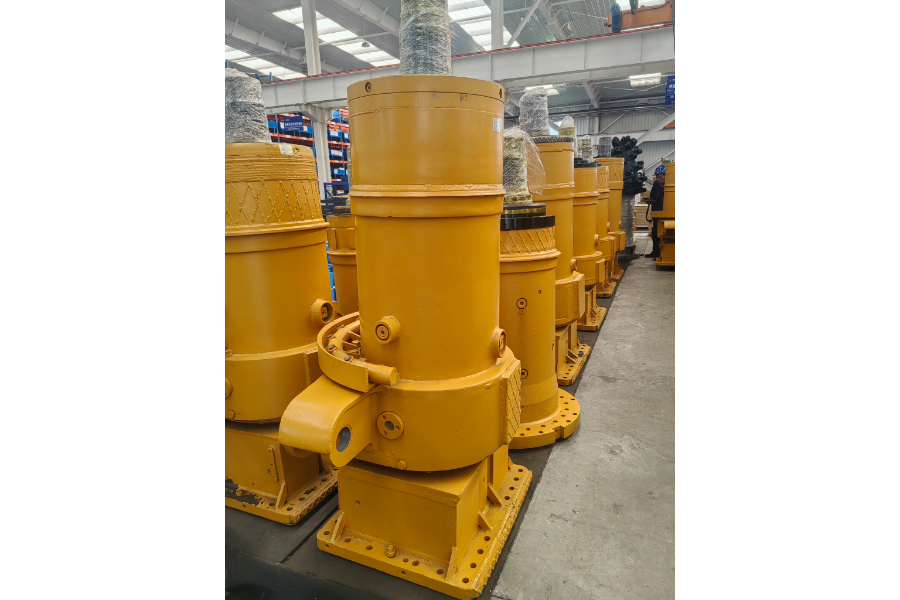

Roadheader Cutting Arm
The roadheader cutting arm is a core actuating component of the cantilever roadheader. It is primarily responsible for the three key tasks of coal cutting, rock breaking, and coal loading, directly determining the machine's overall cutting efficiency, operational stability, and maintenance frequency. Operating under harsh conditions characterized by heavy-load impacts, abrasive coal dust, water seepage, and oil contamination, the cutting arm’s internal gear transmission system and floating seal structure demand extremely high manufacturing precision and assembly standards.
This cutting arm utilizes a structural design featuring a high-strength cast housing, floating seals, and Grade 10.9 high-strength bolting. Combined with rigorous assembly processes and factory test-run verification, it ensures stable operation across complex coal seams, mixed coal-rock formations, and solid rock strata.
Share:
Core Technical Parameters
|
Item |
Parameter / Description |
|
Compatible Model |
Cantilever Roadheader |
|
Applicable Seams |
Coal, coal-rock mix, and solid rock |
|
Key Connection Bolts |
M20, Grade 10.9; tightening torque: 570 N·m; secured with thread-locking adhesive |
|
Floating Seal Assembly Clearance |
3 ± 0.5 mm |
|
Seal Assembly Cleaning Agent |
1755 High-Efficiency Cleaner |
|
Mating Surface Sealing |
Uniform application of sealant to prevent oil and water leakage |
|
Bearing Lubricant |
N320 Lithium-based heavy-duty industrial gear oil |
|
Factory Inspection |
Individual unit testing per the test protocol |
Core Technologies and Process Features
Highly Reliable Floating Seal System
High-Strength Fastening Connection
Precision Error-Proof Positioning Structure
Specialized Lubrication System
Rigorous Factory Test Verification
Highly Reliable Floating Seal System
Floating seal assembly clearance is strictly controlled at 3 ± 0.5 mm; excessive clearance risks leakage, while insufficient clearance risks abrasive damage.
Mating surfaces are thoroughly cleaned with "1755 High-Efficiency Cleaner" prior to assembly to prevent coal dust or abrasive particles from entering the sealing interface.
Specialized sealant is evenly applied to all mating surfaces to effectively prevent oil leakage and water seepage.
Floating seal installation strictly follows the assembly manual; forceful installation methods—such as hammering or impact—are prohibited to prevent premature seal failure at the source.
▎ Customer Value: Underground environments often feature heavy water seepage and high coal dust levels; seal failure leads to oil leaks and machine downtime. This solution significantly reduces unplanned downtime caused by seal failure.
High-Strength Fastening Connection
Critical connection bolts for the cutting arm utilize M20, Grade 10.9 high-strength bolts.
Fastening torque is set at 570 N·m, with thread-locking adhesive applied to prevent loosening due to vibration.
▎ Customer Value: Underground operations involve intense vibration and frequent shock loads; standard bolts often loosen, leading to major failures such as gearbox casing cracks or broken gear teeth. The high-strength bolt plus thread-locking adhesive solution is an industry-standard practice for managing vibration.
Precision Error-Proof Positioning Structure
During the installation of the floating seal seat (Item No. 29), the oil passage hole in the upper section of the cone must align with the marked spline on the cutting main shaft.
The holes in the rear connection flange of the housing must align along a common reference axis.
Specialized tooling is used during assembly to clamp the component, preventing the seal seat from rotating along with the nut during tightening.
▎ Customer Value: Structural design eliminates incorrect installation and misalignment, ensuring the assembly consistently meets design specifications and eliminating the need for repeated adjustments after maintenance or part replacement.
Specialized Lubrication System
N320 lithium-based heavy-duty industrial gear oil is used in the bearing cavity.
The cutting arm must be positioned horizontally before filling; oil is added until it overflows at the minimum oil level mark, ensuring no airlocks or oil shortages occur in the oil passages and cavities.
▎ Customer Value: The cutting reducer operates under long-term heavy loads; N320 lithium-based heavy-duty industrial gear oil offers excellent extreme-pressure anti-wear properties and oxidation stability, making it the standard lubricant for heavy-duty gear transmissions.
Rigorous Factory Test Verification
After assembly, each cutting arm undergoes both no-load and load testing in accordance with the test protocol.
Key parameters—such as gear meshing, temperature rise, sealing integrity, and vibration—are verified; shipment is authorized only after passing these checks.
Overall Appearance and Protection
Unmachined surfaces are coated with red anti-rust paint to help the customer distinguish between machined surfaces and mating surfaces.
External surfaces are painted the same color as the main unit, ensuring a uniform and harmonious appearance.
Applicable Operating Conditions
Underground coal mine fully mechanized mining and excavation faces
Excavation of coal roadways, coal-rock mix roadways, and solid rock roadways
Surrounding rock of medium hardness or lower (subject to main machine power and cutter pick configuration)
Underground environments with high dust and water seepage
Practical Benefits for Customers
Cutting Efficiency
High-precision gear train + stable floating seal operation; reduces vibration and energy loss
Failure Rate
High-strength bolts + thread-locking adhesive + error-proof positioning → Significantly reduces early-stage failures caused by loosening or incorrect assembly
Service Life
N320 heavy-duty industrial gear oil + floating seal design → Extended gear and bearing lifespan
Ease of Maintenance
Standardized assembly processes + tooling assistance → Easy restoration to design specifications after on-site component replacement
Downtime Losses
Reliable sealing and connections → Significant reduction in unplanned downtime
Quality Assurance and Service
Materials and strength grades for critical components comply with drawings and technical agreements; factory records regarding critical torque values, sealing clearances, and lubrication quantities are fully traceable.
Assembly process documentation, test-run records, and operation & maintenance manuals are provided with the equipment.
Technical support—including on-site installation guidance, operation training, and troubleshooting—is available upon customer request.
Free repair or replacement for failures caused by manufacturing defects during the warranty period.
